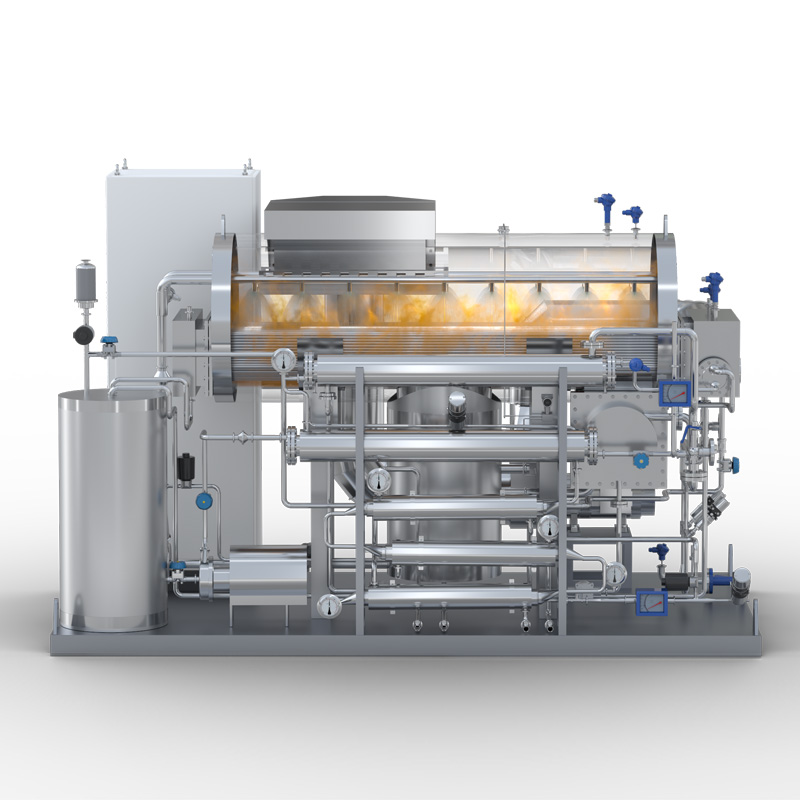

Horizontal Type WFI Still

Maglev state-of-the-art steam compressor
0 friction, 0 oil, 0 cooling water
Compliance with GMP, cGMP, FDA, ASME, CE

Description

Description

Description

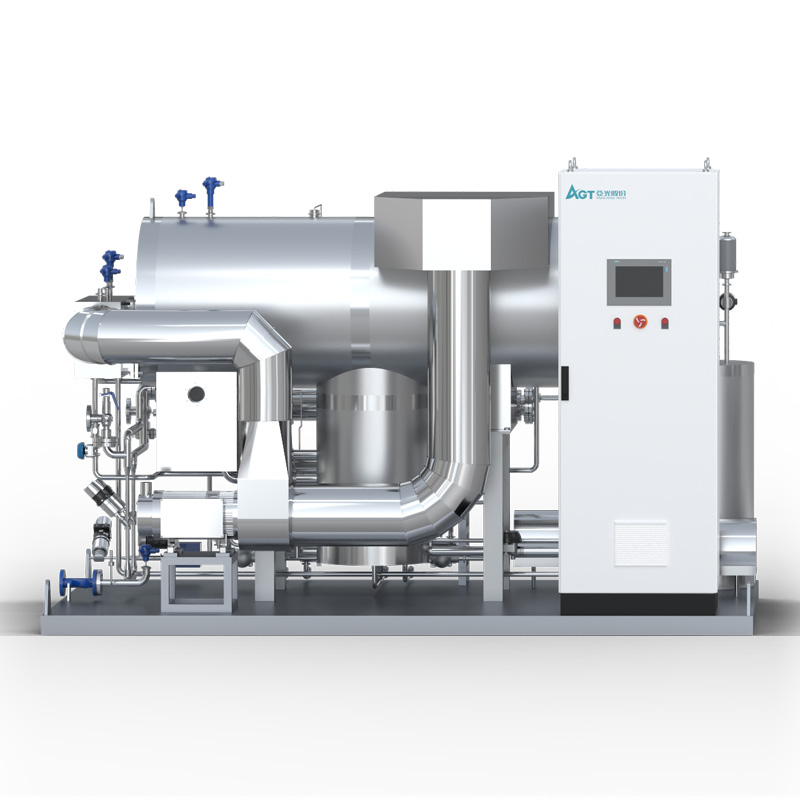

Overview of AGT Vapor Compression Still

Vapour compression distillation is a high efficiency method to produce water for injection (WFI), the WFI produced by AGT vapor compression distillation system can meets the most strict pharmaceutical standard and in accordance with all recognized pharmacopoeias.

The produced water quality is excellent, with a conductivity of
The WFI generation system features a five-stage preheating process, effectively utilizing the residual heat.
All heat-exchangers are designed with a dual-tube plate structure, with the inner tube plate expanded and the outer tube plate welded, meeting cGMP and FDA standards.
Materials in contact with purified water, secondary steam, and injection water are made of 316L stainless steel, with a surface roughness of Ra ≤ 0.4 μm.
Non-pressure vessels ensure high safety, making operation and maintenance easier.
Compared to multi-effect distillation, this vapor-compression WFI still operates at lower evaporation temperatures, leading to a longer lifespan and reduced risk of red rust formation.
Siemens PLC automation control allows for one-touch start/stop, with strict interlocking controls and automatic detection of system anomalies.
Real-time energy monitoring modules and cloud services are available for remote monitoring, control, and diagnostic support.

Features of AGT Vapor Compression Stills

High Water Quality

Endotoxins<0.01EU/ml;
Conductivity<0.3μm/cm @25℃
Low evaporation temperature, low risk of producing red rust;

Low OPEX

Low OPEX benifits from Maglev steam compressor
Equipped with real-time energy consumption monitoring and analysis function

Easy to Use

Skid-mounted design, plug-in and play
No lubricating oil and cooling water
Lelink IIoT ready

High Safety

Atmospheric pressure operation;
No high-temperature external drainage, no need for cooling water
Comprehensive safety chain protection

Stable Operation

Maglev compressor, stable operation, low maintenance requirements
Rising film evaporation technology, stable and efficient

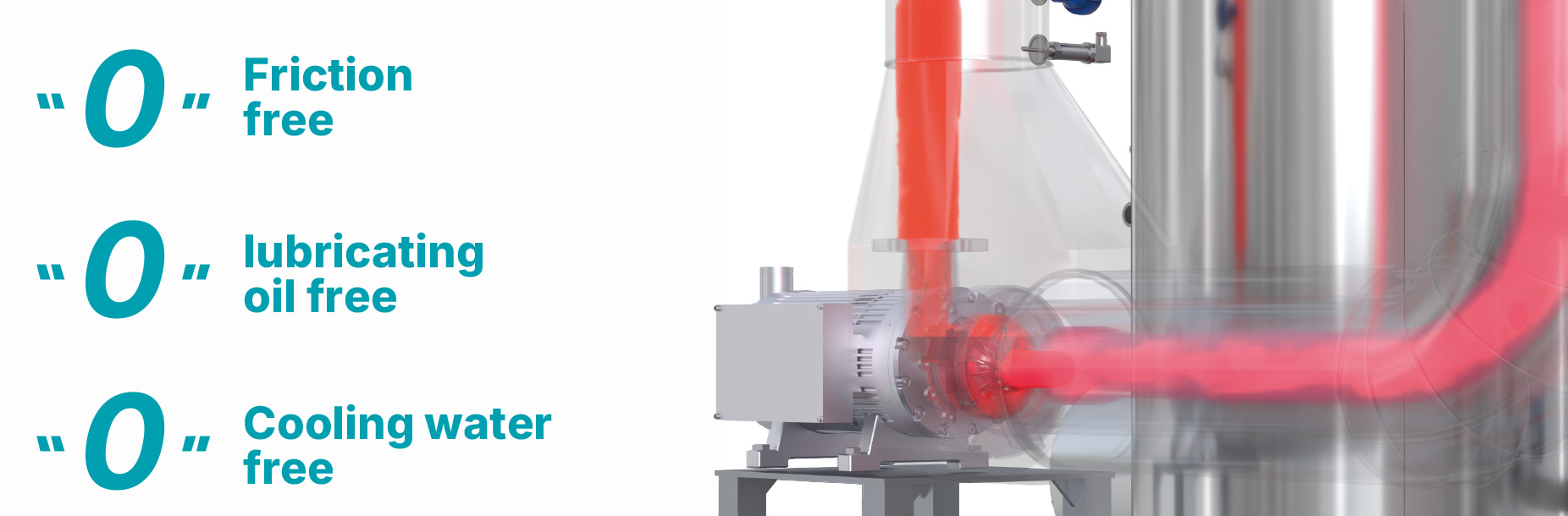

State-of-the-art Maglev Vapor Compression Technology

Maglev (Magnetic levitation) is a cutting-edge bearing technology that has been widly used in air compressor and other rotating equipment fields, AGT and it's subsidiary Leheng develped the maglev steam compressor together according to the pharmaceuiticle guidlines. Mechanical vapor compression (MVC) has been widly used in various applications like MVR evaporator, heat pump assisted distillation. The maglev steam compressor featuring friction free, oil free, and cooling water free, that means the compressor has higher effeciency and lower consumption.

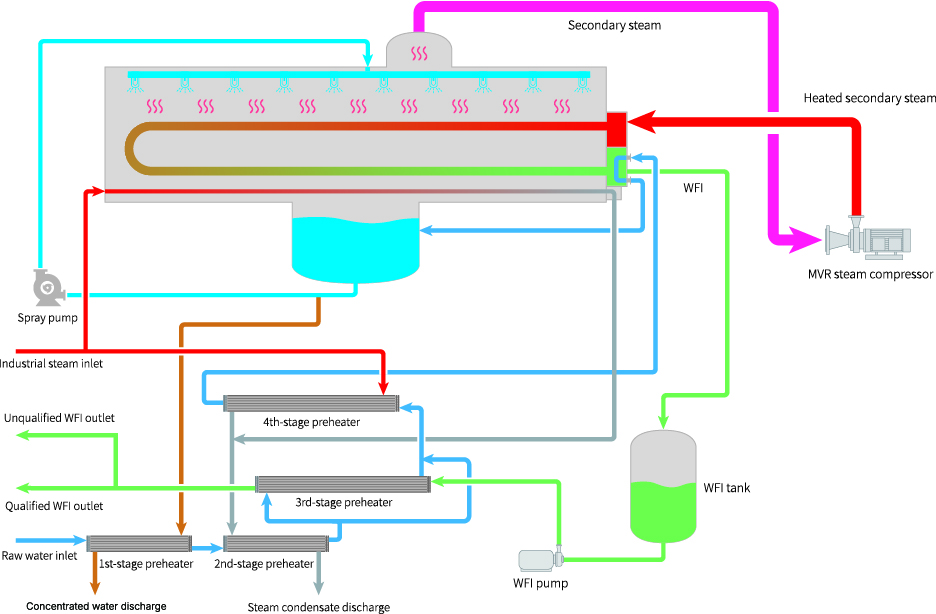

Vapor Compression Distillation Process

WFI generation process

Preheating System

The distiller employs a 5-stage pre-heating system, which can maximizing the use of residual heat within the system, and ensuring no high-temperature water is produced. Pharma grade double tube sheet design shell & tube heat exchanger reduces the risk of leakage.

Evaporation System

The evaporator features a vertical rising film design. The water in the shell side of the evaporation chamber can be fully drained, guaranteeing the reliability of the water quality.

MVR Steam Compression System

The system uses a compressor to compress secondary steam, increasing its temperature and pressure to supply heat for the subsequent evaporation of purified water. This process significantly reduces energy consumption. Two compressor types are available—magnetic levitation and high-speed direct drive—ensuring efficient and energy-saving performance across all models.

Water Discharge

Condensed and qualified WFI enters to a buffer tank before being pumped to a WFI storage tank. Non-qualified water will be discharged appropriately.

Specification

Comparision to Multiple Effect WFI Still

Produced water quality comparison

Item	ChP	Multi-effect distilled water machine	Vapor-compression WFI Still
Distilled water conductivity uS/cm at 25°C	<1.3	<0.8	0.3
Microbial limit CFU/100ml	<10	<2	Undetected
Total organic carbon TOC mg/L	<0.5	<0.2	<0.03
Bacterial endotoxin EU/ml	<0.25	<0.125	<0.01

Utility requirements comparison

Item	Multi-effect distilled water machine	Vapor-compression WFI Still
Industrial steam	4-9bar	2-4bar
Feeding water	6-9bar Feed water pump required	2-4bar
Cooling water	2-3bar	No need
Compressed air	5.5-8bar	5.5-8bar
Industrial electricity	Three-phase five-wire 380V	Three-phase five-wire 380V

Specification of AGT WFI Still

Model	Production Capacity(L/h)	Feeding Rate(L/h)	Steam Consumption(kg/h)	Electricity Power Consumption(kW•h)	Dimension(L x W x H in mm)	Weight(kg)	Steam Compressor
RY1000	1000	1060	90	20.8	3650X2050X2250	3000	Leheng Maglev/ Direct-drive Steam Compressor
RY2000	2000	2120	180	33.7	4200X2400X2500	3750
RY3000	3000	3180	270	51.7	4500X2500X2750	4750
RY4000	4000	4240	360	66.5	4800X2700X2850	5850
RY5000	5000	5300	450	78.5	5300X2900X3000	6950
RY10000	10000	Contact us to get more details
RY15000	15000
RY20000	20000
RY25000	25000
RY30000	30000
Customized design	Customized design
Note: [1]For capacity above 25T/h, a high-speed direct-drive or gearbox steam compressor is required; [2]The design margin is ±20%, the actual parameters are subject to the design specifications.
